Hertz Energy Slim – Bursting Power And Dynamics, Even In Reduced Spaces

The just released Energy Slim subwoofers are for those who want to optimize low frequency performance within the small available space in today’s automobiles, without compromise in either power or authority.
The Hertz R&D team has designed four Slim solutions; two subwoofer drivers and two enclosed systems, with the goal of maintaining efficiency and timbre quality without increasing size. The result is superlative! The ES F20.5 200mm subwoofer measures only 86mm in depth, while the ES F25.5 250mm subwoofer is only 94mm, with a maximum power handling of 400W and 500W respectively.

The two enclosed systems, EBX F20.5 and EBX F25.5, feature a passive radiator design providing exceptional musicality, even at the lowest frequencies. An MDF enclosure, strengthened with internal bracing, is implemented, avoiding resonances and flexing, both enemies of sound quality and overall performance.

Their high-flux density magnet, complete with a Copper voice coil, and the water-repellent, pressed-paper cone provide the ability to reliably sustain the very high sound pressure levels demanded of low frequency systems.
With their attractive and aggressive design, the Energy Slim single subs proudly display the Hertz logo and the Energy line name on their dust caps; the Energy Slim sub-boxes have an exclusive, ultra flat profile with a unique moulded grille, featuring the Hertz logo on a reversible metal plate, for maximum versatility in any installation configuration.

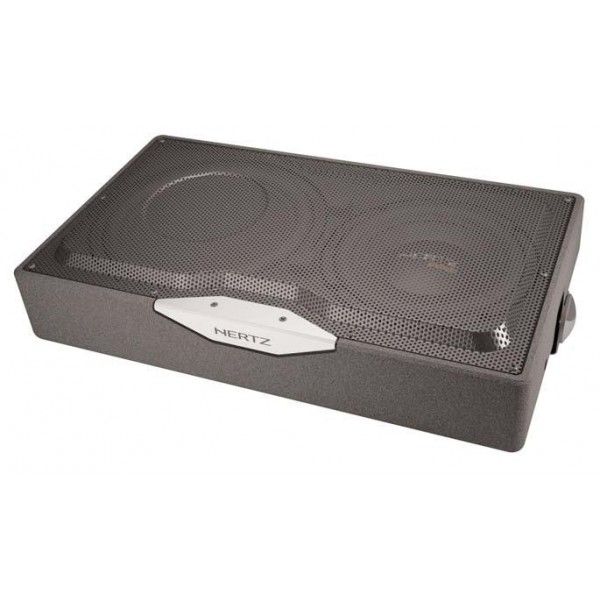

EBX F25.5
Component Passive Radiator Reflex Sub Box
Speaker Size 250mm 10in
Passive Radiator Size 300mm 12in
Power Handling 300W continuous 600W peak
Impedance 4Ohms
Frequency Response 38Hz to 350Hz
Sensitivity 92dB/SPL 1W/1M
Box Size WxHxD 670 x 403 x 119mm
Magnet High density flux ferrite
Cone Water-repellent pressed paper
Weight 11.9kg, 26.24lb
1. ULTRA Flat profile, keeping size to a minimum for ease of placement and hidden cosmetic integration within the vehicle.
2. Constructed from 18 mm MDF with internal bracing, minimizing enclosure losses.
3. Slanted lower panel helps to reduce back wave reflections and eases installation.
4. Low loss foam surround Passive Radiator, for powerful, undistorted output.
5. Low profile-high excursion subwoofer unit provides bursting dynamics.
6. Molded metal grille offers total speaker protection and great cosmetic appeal.
7. Reversible Hertz Logo, configurable to the different installation positions.
8. Proprietary connection terminals provides the utmost in functionality and safety.
9. Easy-Remove metal mounting system, for a clean and reliable installation.
EBX F20.5
Component Passive Radiator Reflex Sub Box
Speaker Size 200mm 8in
Passive Radiator Size 250mm 10in
Power Handling 200W continuous 400W peak
Impedance 4Ohms
Frequency Response 38Hz to 350Hz
Sensitivity 90dB/SPL 1W/1M
Box Size WxHxD 520 x 320 x 108mm
Magnet High density flux ferrite
Cone Water-repellent pressed paper
Weight 7.2kg, 15.87lb

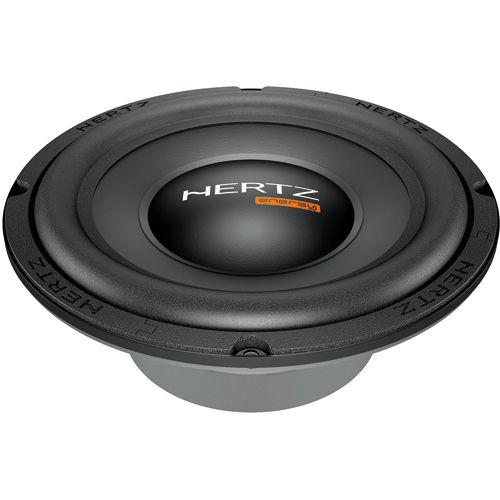

ES F25.5
Component Subwoofer
Size 250mm 10in
Power handling cont. program 250w peak 500 W
Impedance 4 Ohms
Frequency response 30Hz to 300hz
Sensitivity 92 dB/SPL 1W/1m
Mounting Depth 83mm
Magnet size mm (inch) 140 (5’ 1/2)
Magnet High density flux ferrite
Cone Water repellent pressed paper
X-mech13mm
D mm 215
Xmax mm 6
Re Ω 3
Fs Hz 37
Vas l 42,9
Mms g 82,0
Cms mm/N 0,23
BL T m 10,4
Qts 0,48
Qes 0,52
Qms 5,58
Spl dB 92
