MAGICO – AWESOME AUDIO IN ALUMINIUM

NEW fabulous speakers at the very high end of HiFi as the ‘High End’ show is about to be held in Munich.. here are the new things from Ally Kings, MAGICO:

• A1 standmount speakers: £8,888 per pair
• AAC centre speaker: £7,998
• ASUB active subwoofer: £7,498

The Magico A1 Reference Quality 2-Way Bookshelf Loudspeaker

HAYWARD, CA (USA) – Building on the tremendous success of the A3, Magico is proud to expand the A-Series with the introduction of the new A1 bookshelf loudspeaker — a fully braced aluminium enclosure, beryllium dome tweeter, carbon Nanographene cone, and our renowned elliptical
crossover. The A1 represents an unprecedented value in its price category.

Aircraft Grade Aluminium Enclosure
The A1 enclosure is constructed using 3⁄8” thick 6061 T6 aircraft grade aluminium, similar to the enclosure developed for the Q1 and is available in an elegant brushed-aluminium, black anodised finish. An innovative internal bracing technique along with the most advanced damping materials makes the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The complete enclosure design of the A1 is evaluated in simulation using the latest FEA software along with physical testing to meet the uncompromising requirements of Magico for optimised enclosure rigidity, stability and to ensure benchmark acoustical standards.

High Frequency Driver
Featuring the same tweeter as the full range A3, the A1 utilises a pure Beryllium-diaphragm with an optimised 28-mm dome based on the fundamental design platform and geometry of our reference M-
Series tweeter. The customised neodymium motor system is encased in an improved back chamber with our latest generation damping materials that facilitate ultra-low distortion, higher power handling, massive dynamic capabilities, and extended linear voice coil movement.

Mid-Bass Driver
The newly developed 6.5-inch mid-bass driver features a Multi-Wall carbon fibre cone with a layer of XG Nanographene, providing optimal stiffness to weight ratio and an ideal damping factor. The driver frame has been designed, simulated and tested for the optimal combination of stiffness and damping. Minimum acoustical impact is achieved through reducing vibration modes while maximising air flow. The motor system incorporates extra-large magnets to ensure a stabilised magnetic field in the 39-
mm pure titanium voice coil. The A1 mid-bass driver is optimised for minimal music related distortions in its bandpass, in both the frequency and time domains using state of the art finite element analysis
simulation of acoustical, mechanical, electromagnetic and thermal behaviour.

Crossover
The drivers in the A1 are acoustically integrated using Magico’s proprietary Elliptical Symmetry Crossover topology that utilises state-of-the-art components from Mundorf of Germany. The 2-way network features a 24db per octave Linkwitz-Riley filter that maximises frequency bandwidth while
preserving phase linearity and minimising intermodulation distortion.

MAGICO ACC High Performance, 3-Way (Four Driver) Centre Channel Loudspeaker.

Multi-channel soundtracks for movies and music include a dedicated centre
channel track of information that can range from subtle to explosive in a split second. In order to properly reproduce these dynamic swings of micro and macro information, a full range centre channel loudspeaker that matches the speed and integrity of the front L/R loudspeakers is required.

Magico is proud to introduce the new ACC loudspeaker which pairs perfectly with the incredible A3 to create a seamless front-stage of sound performance. The ACC features a sealed, fully braced aluminium enclosure, beryllium dome tweeter, carbon Nanographene cones, neodymium-based
motor systems and our renowned elliptical crossover. A true Magico loudspeaker design offering unparalleled sound performance in its category and price point and above all deserving of the Magico “M” engraving – a mark of our uncompromising drive to push the boundaries of loudspeaker technology. In combination with our tremendously successful A3, newly announced A1 two-way, ACC centre channel and the ASUB, all applications for a full Magico home theatre are now accessible to a
larger audience than ever before.

Aircraft Grade Aluminium Enclosure
The ACC enclosure is constructed using 3⁄8” thick 6061 T6 aircraft grade aluminium, similarly to the enclosure developed for the Q1 and is available in an elegant brushed, black-anodised aluminium finish. An innovative internal bracing technique along with the most advanced damping materials makes the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The finished enclosure design of the ACC is evaluated in simulation using the latest FEA software along with physical testing to meet the no-compromise requirements of Magico for optimised enclosure rigidity, stability and to ensure benchmark acoustical standards.

High Frequency Driver
The ACC tweeter follows the A3 with a pure Beryllium-diaphragm tweeter with an optimised 28-mm dome surface which is based on the fundamental design platform and geometry of our reference M-Series tweeter design. The customised neodymium motor system is encased in an improved back chamber with our latest generation damping materials that facilitate ultra-low distortion, higher power handling, massive dynamic capabilities and extended linear voice coil movement.

Midrange Driver
The 6-inch midrange driver, also deployed in the A3, features a Multi-Wall carbon fiber cone with a layer of XG Nanographene, providing an optimal stiffness to weight ratio and an ideal damping factor. The driver frame has been simulated and tested for the optimal combination of stiffness and damping. Minimum acoustical impact is achieved through reducing vibration modes while maximising air flow. An overhung neodymium-based motor system incorporates extra-large magnets to ensure a
stabilised magnetic field in the 75-mm pure titanium voice coil. The ACC midrange driver is optimised for minimal music related distortions in its band pass, in both the frequency and time domains using latest state of the art FEA simulation of acoustical, mechanical, electromagnetic and
thermal behaviour.

Bass Driver
Extended low bass frequencies which are incredibly deep and fast result from 7-inch bass drivers (x2) that are found in the A3 which are produced with advanced manufacturing techniques using Multi- Wall carbon fibre with a layer of XG Nanographene. Powerful neodymium magnets control a 75-mm pure Titanium voice coil that has long throw excursion and produces clean, undistorted sound pressure levels. Individual driver performance and the ACC loudspeaker in its final form are tested and optimised for acoustical, mechanical, electromagnetic, and thermal behaviours using the latest state-of-the-art Finite Element Analysis simulation testing equipment.

Crossover
The drivers in the ACC are acoustically integrated using Magico’s proprietary Elliptical Symmetry Crossover topology that utilises state-of-the-art components from Mundorf of Germany. The dividing network features a 24db per octave Linkwitz-Riley filter that maximises frequency bandwidth while preserving phase linearity and minimising intermodulation distortion.

ASUB Reference Quality Powered Subwoofer

HAYWARD, CA (USA) – Whether in music or movie soundtracks – the rhythmic beat of deep powerful bass resonates with our inner core and generates excitement levels that can raise goosebumps.

Magico is proud to introduce the new ASUB which expands the sound dimension capabilities of the A3, the A1 or any other speaker with thundering low-bass frequency reinforcement. The ASUB features a fully braced aluminium enclosure, ultra-stiff aluminium cone, internal power amplification, electronic crossover and DSP control centre. A true Magico loudspeaker design offering superb performance with extensive control and uncompromised engineering deserving of the Magico M engraving.

ENCLOSURE

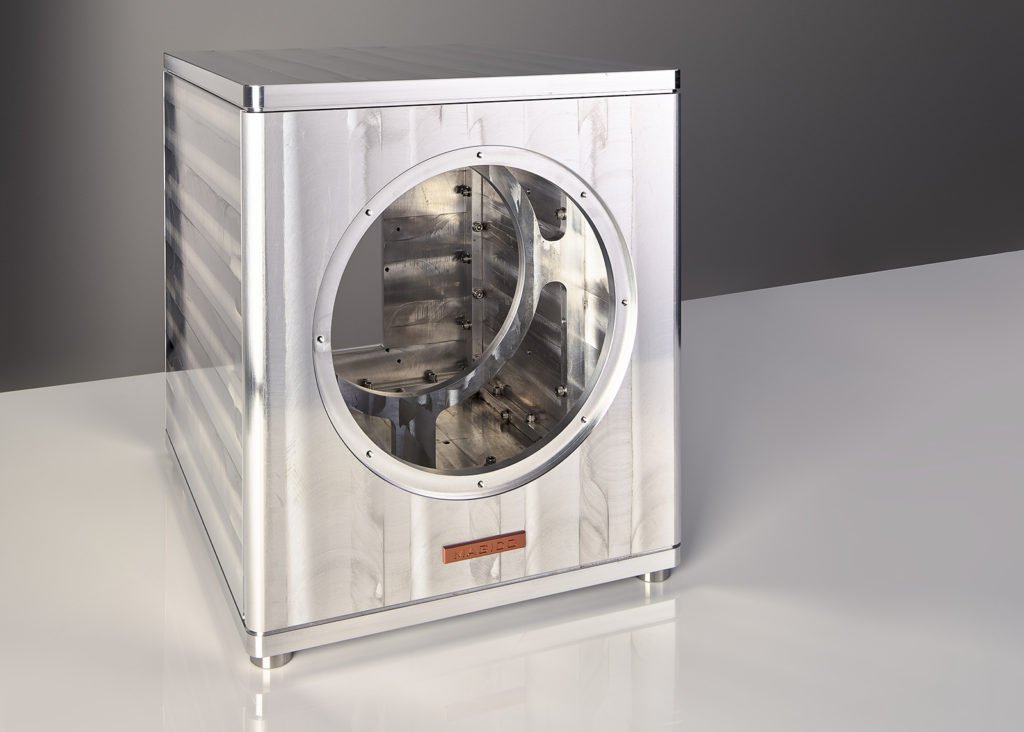

The ASUB enclosure shares principles of the QSUB architecture with 3/8”-thick 6061 T6 aluminium, innovative internal bracing and advanced damping materials which are developed and evaluated both in simulation using FEA software and physical testing to meet the uncompromising standards of Magico as it relates to rigidity, stability and minimum acoustical contribution. The ASUB is available in an elegant anodised black brushed aluminium finish.

BASS DRIVER
The ASUB utilises a newly developed Magico 10-inch aluminium driver that has an ultra-stiff aluminium cone with an optimal stiffness to weight ratio. The driver is calibrated to minimise music related distortions in the low frequency range using latest state of the art FEA simulation of acoustics,
mechanics, electromagnetic and thermal behaviour which are now completed on a single platform which enhances the level of accuracy.
The front firing driver has an extremely powerful magnet assembly which is capable of generating deep, powerful, controlled bass frequencies with speed and accuracy. The pure Titanium 55mm voice coil motor system provides a super stabilised magnetic field with a long excursion rate and is
capable of reproducing 50Hz at 110dB with minimal distortion.

AMPLIFIER / CROSSOVER
The internal digital amplifier of the A-SUB delivers 500 Watts of purpose-built power. Seamless integration with the main loudspeakers in a stereo or home theatre system is easily achieved with the onboard digitally-controlled active crossover and DSP control. The DSP software allows for perfect integration of the subwoofer and main loudspeakers operating together in the listening room. Other key features include 3-memory presets to store individual settings, auto-detect, auto-shutdown, anti-clip and thermal protection.

The relatively small footprint of the ASUB is capable of generating huge air pressure changes in the listening room and will provide incredibly deep, powerful bass with the speed and integrity of the main loudspeakers. The front firing design of the ASUB is easy to position in the listening room and
will make an exciting sonic contribution to the overall sound performance of any system.

About Magico, LLC
Magico was created over a decade ago for the sole purpose of leading a no holds-barred assault on what is possible in contemporary loudspeaker design. Inspired by the unique vision of Industrial designer and accomplished musician Alon Wolf, every Magico product is designed against the true standard of perfect audio reproduction – live music. At Magico, we strive to lead in the creation, development, and manufacture of the most elegant and technologically advanced loudspeaker systems in the world. Each product expresses our passion to craft uncompromising devices that reveal the music as never before.
