Phoenix Gold Rises

13th June 2011 Adam Rayner

Yes, it’s true, Phoenix Gold is to come to the UK, as scooped here on Talk Audio last week and yes, this SD amplifier is to be part of the offering, hence, here’s the full tech spec.
SD Amplifiers are the newest creation from the engineering gurus at Phoenix Gold. These amplifiers are ultra compact, so they can be mounted just about anywhere. But don’t be fooled by their small size as these amplifiers deliver serious power output. The PG gurus have created a full-range Class D topology that delivers seamlessly outstanding sound quality that even the most sensitive of ears will enjoy.
The Class D design is also ultra-efficient. This means lower operating temperatures and eases the strain on the vehicle’s electrical system. The SD amplifiers are the perfect balance of power, size and affordability.

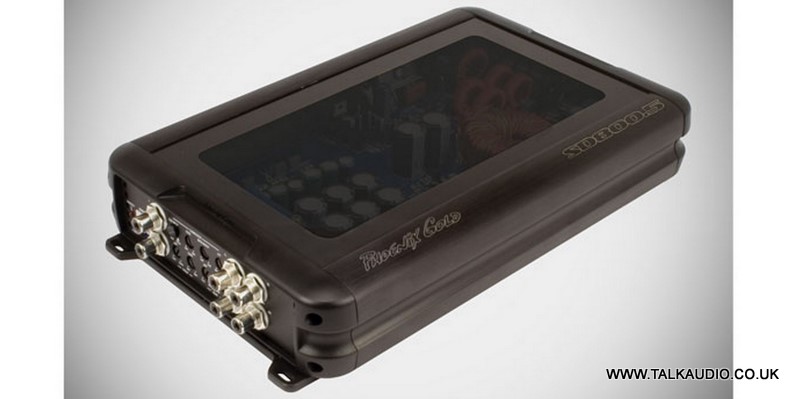

SD800.5 800w Five Channel Amplifier
Features

. Full Range Class D Topology
. Compact Size for Easy Installation
. Robust Unregulated Power Supply
. Surface Mount Component Technology
. Power Supply Filtering eliminates AM/FM interference
. Panel Mounted RCAs
. Direct Insert Power and Speaker Terminals
. Audio Precision Quality Control Verification
. High Temperature Plexiglas cover
. 13.1in L x 7.1in W x 2.0in H
Specification
Power Rating 125 Watts x 4 Channel / 2 Ohm
75 Watts x 4 Channel / 4 Ohm
300 watts x 1 Channel / 2 Ohm
200 watts x 1 Channel / 4 Ohm
Sub Low Pass Range 30Hz to 300Hz
Low Pass Slope 24dB/Octave
Front/Rear High Pass Filter Range 15Hz to 300Hz
High Pass Filter Slope 12dB/Octave
Power Terminal 4GA
Frequency Response 20Hz to 20kHz (+/- 1dB)
Signal to Noise Ratio Greater than 100dB
Total Harmonic Distortion Less than .1%
Efficiency 70%
Damping Factor Greater than 200
Heatsink Thermal Mass 5.0 grams per mm
SRP £379.99
link

I have it on good authority that there will be Ti amplifiers, subs and speakers as well as the SD and R series amps and the SL subwoofer line, thus far.
We’ll let you know the moment they have arrived and start shipping. Last time there was hot news from Celsus, we had the story published before they had even finished emptying the container at Celsus HQ!
