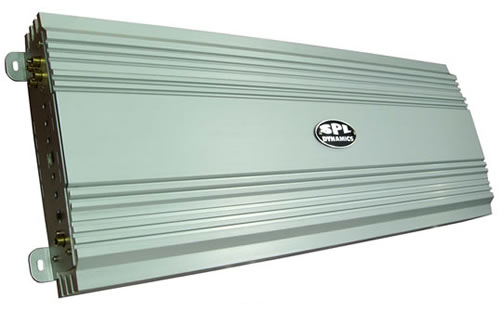

SPL Dynamics D6

SPL Dynamics are a mad-end competition grade brand made for hardcore enthusiasts. Their new D6 amplifier has been developed especially for extreme Street Bassers and the “Street” Classes of dB Drag Racing, a very specific Formula 1 sort of design brief. The D-series amplifiers are built for competition use and are used in many of the world’s loudest cars. These are as far past ‘normal’ as a top fuel dragster.
The wide operation voltage range allows them to be used from Street Class with a single 12V battery, or fed with fatter voltages than most people’s car’s can muster for even more insane power. The D6 operates in Class D with high efficiency and can be linked to another one to achieve double output power into a single speaker wire, resulting in output wattages you might find hard to even believe. They are gospel. Only for use by experts under guidance.

Number of channels: 1
RMS Power 1 Ohm ( 12.0V ): 4,100W
RMS Power 1 Ohm ( 14.4V ): 5,700W
RMS Power 1 Ohm ( 16.0V ): 6,700W
2pcs linked
RMS Power 2 Ohm ( 14.4V ): 11,400W
RMS Power 2 Ohm ( 16.0V ): 13,400W
THD: < 1%
Input sensitivity: 0.2 – 6 V
Lowpass filter: 20 – 200 Hz
Subsonic filter: 10 – 50 Hz
Phase control: 0 – 180 degrees
Remote level control
Two amp linkable function (Output Master/Input Slave)
2 x 1/0 Gauge power cable connectors
Line output
Dimensions ( WxHxD ): 300x68x700 mm

Distributors Car Audio Direct shipping in the UK now – 01491 825700
